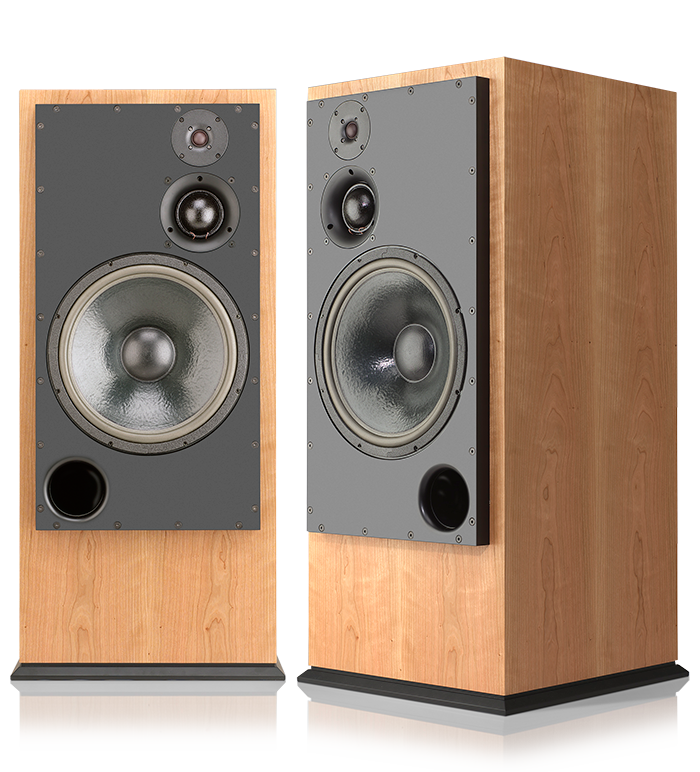

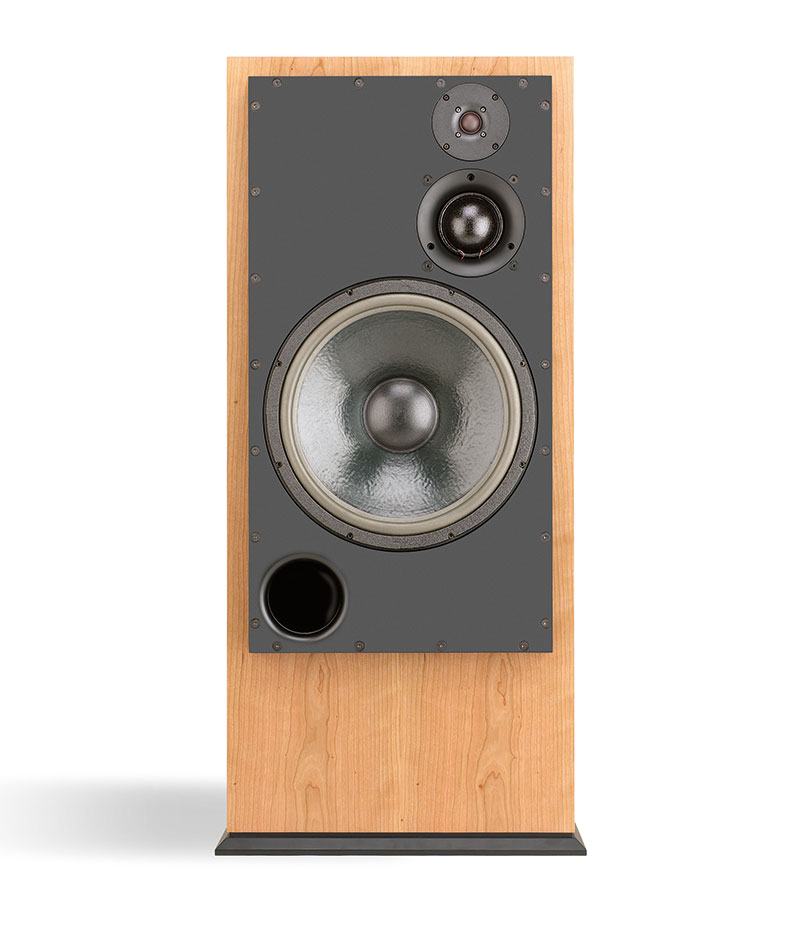

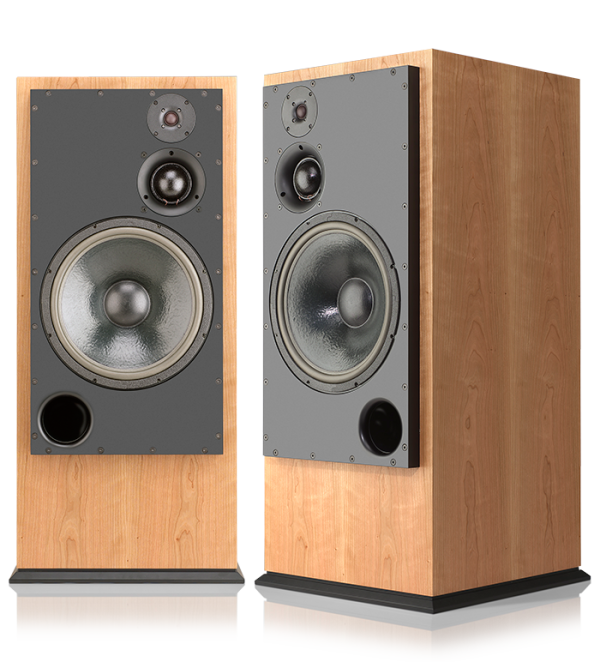

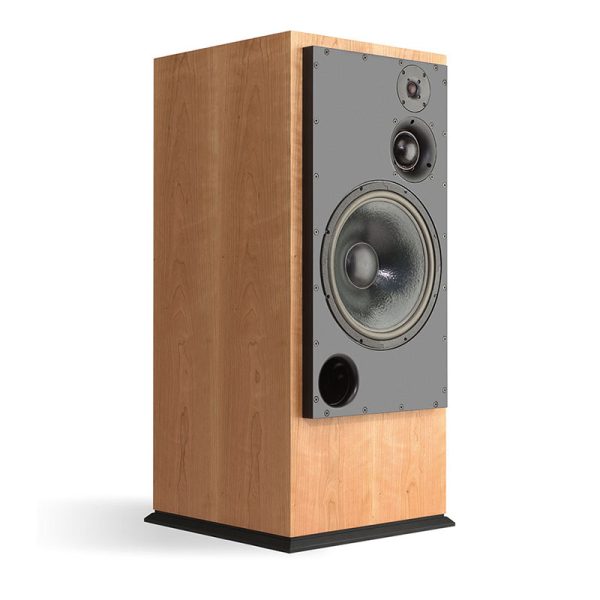

SCM150ASLT
Overview
- ATC SM75-150 S Soft Dome Mid driver
- Latest 375mm SL Spec Bass driver
- Massive ATC motor assembly
- Wide, even dispersion for pin-point imaging
- 350 watt class AB tri-amp pack
- Active filters and overload protection
- 6 year warranty
- Also available in passive version
Available Finishes

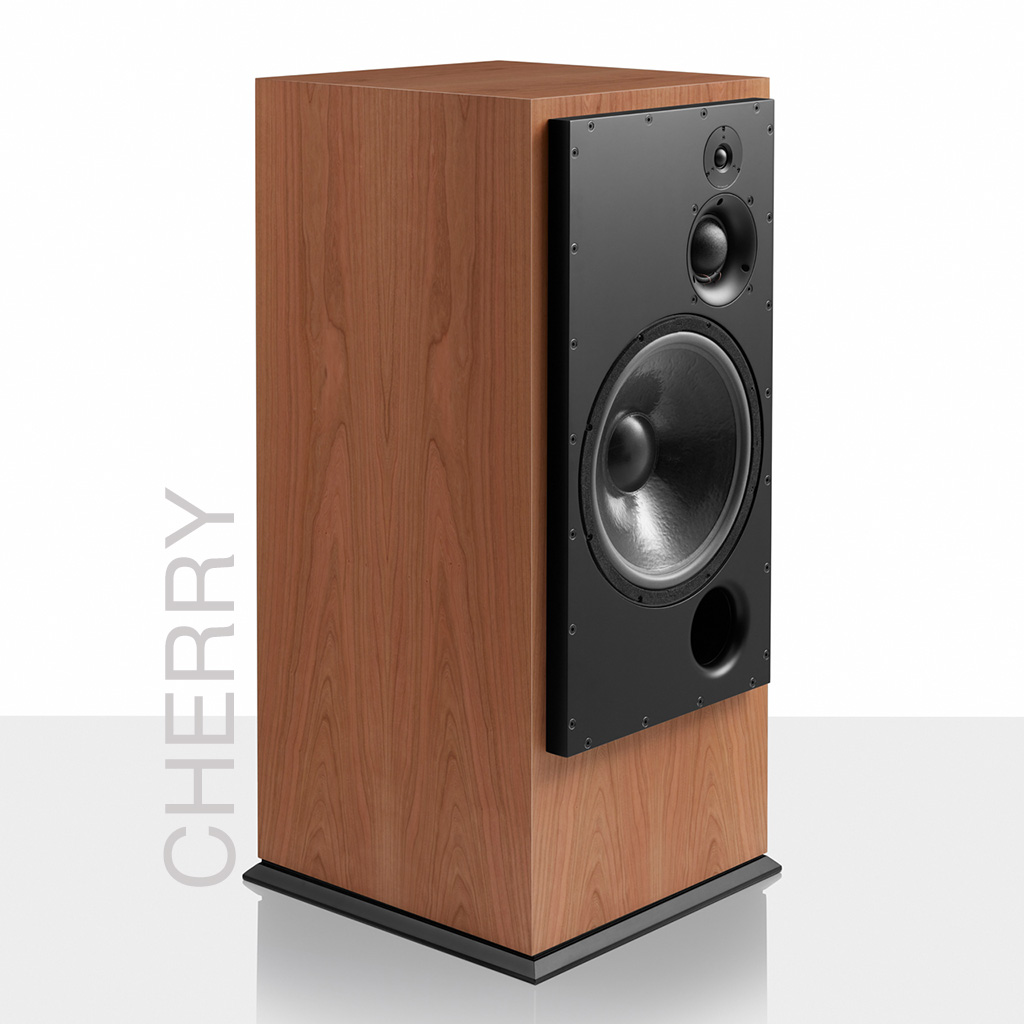

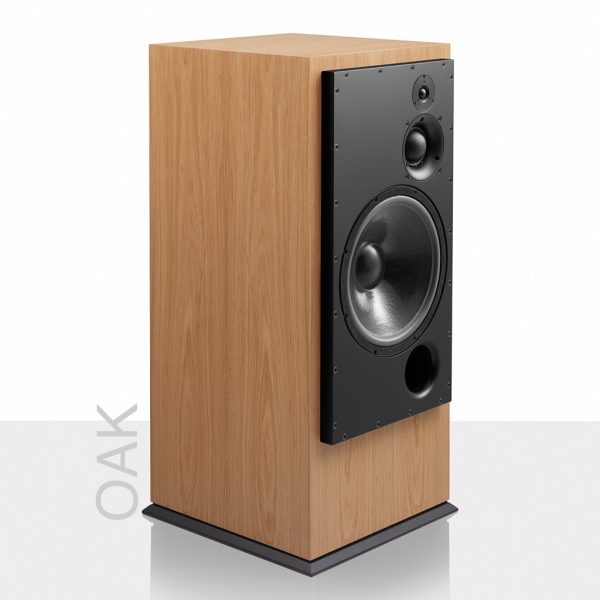

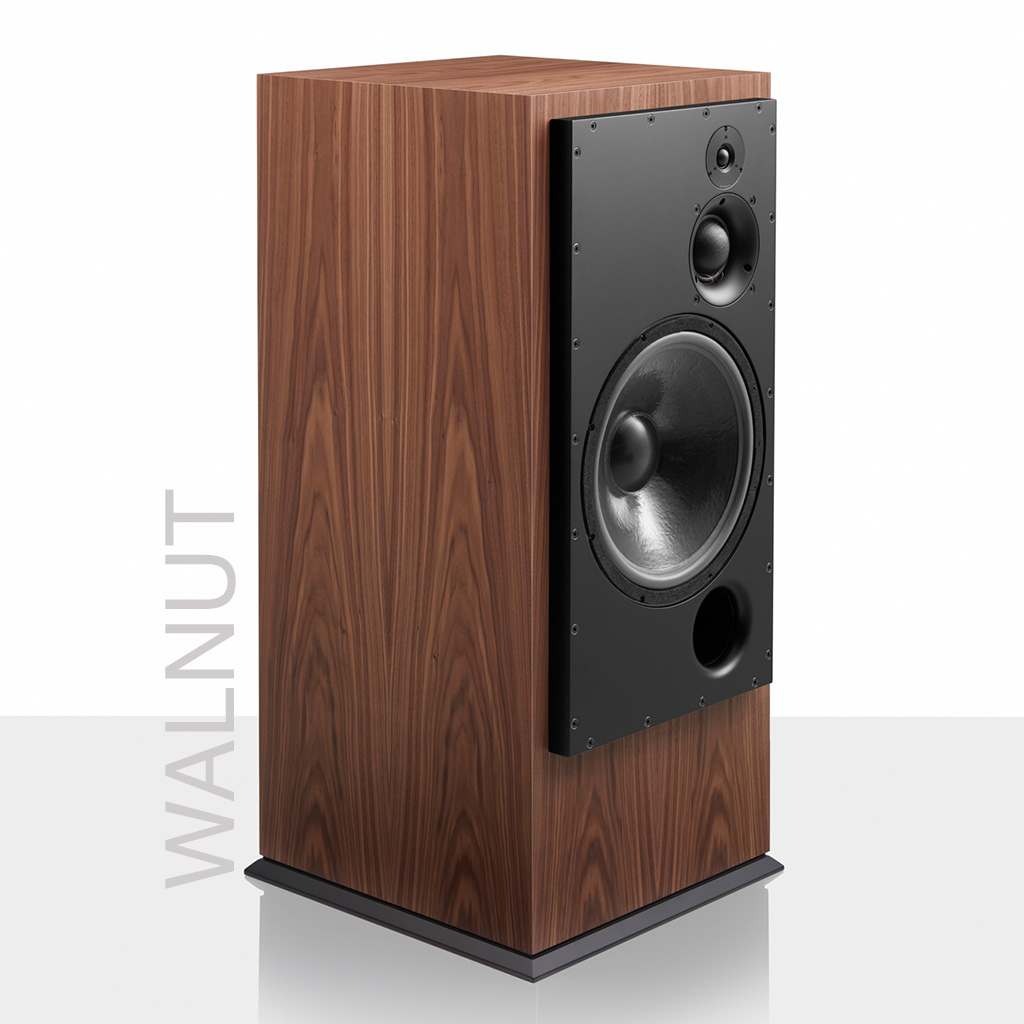

Standard Veneers – Cherry, Walnut, Oak & Black Ash.

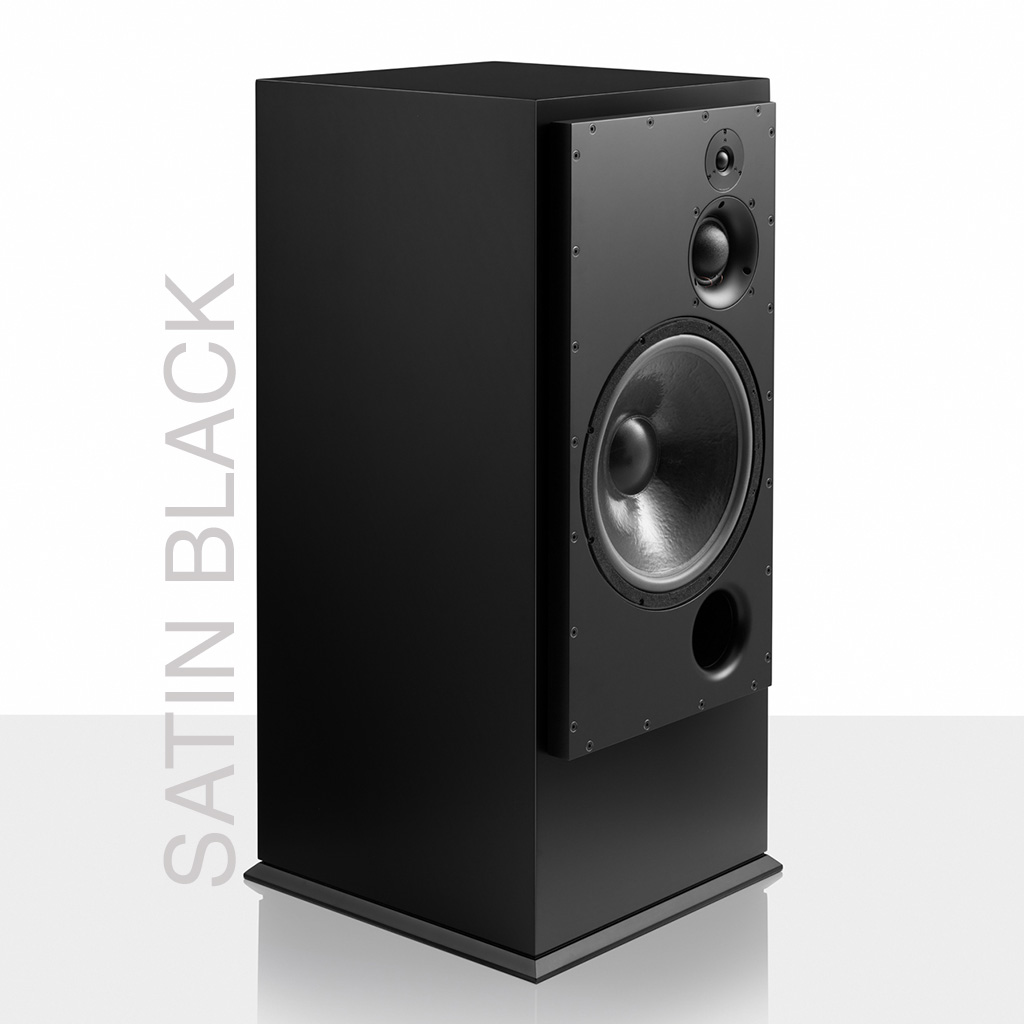

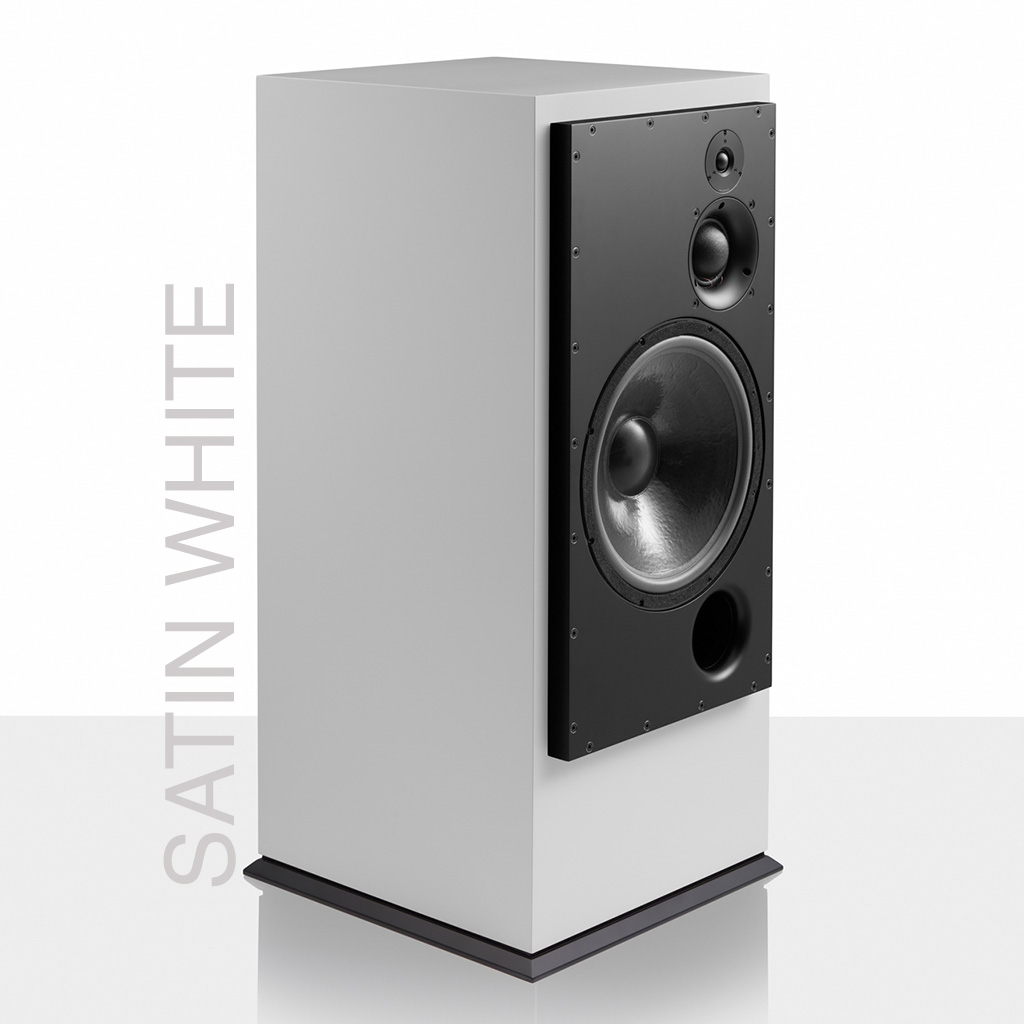

Standard Paints – Satin Black, Satin White

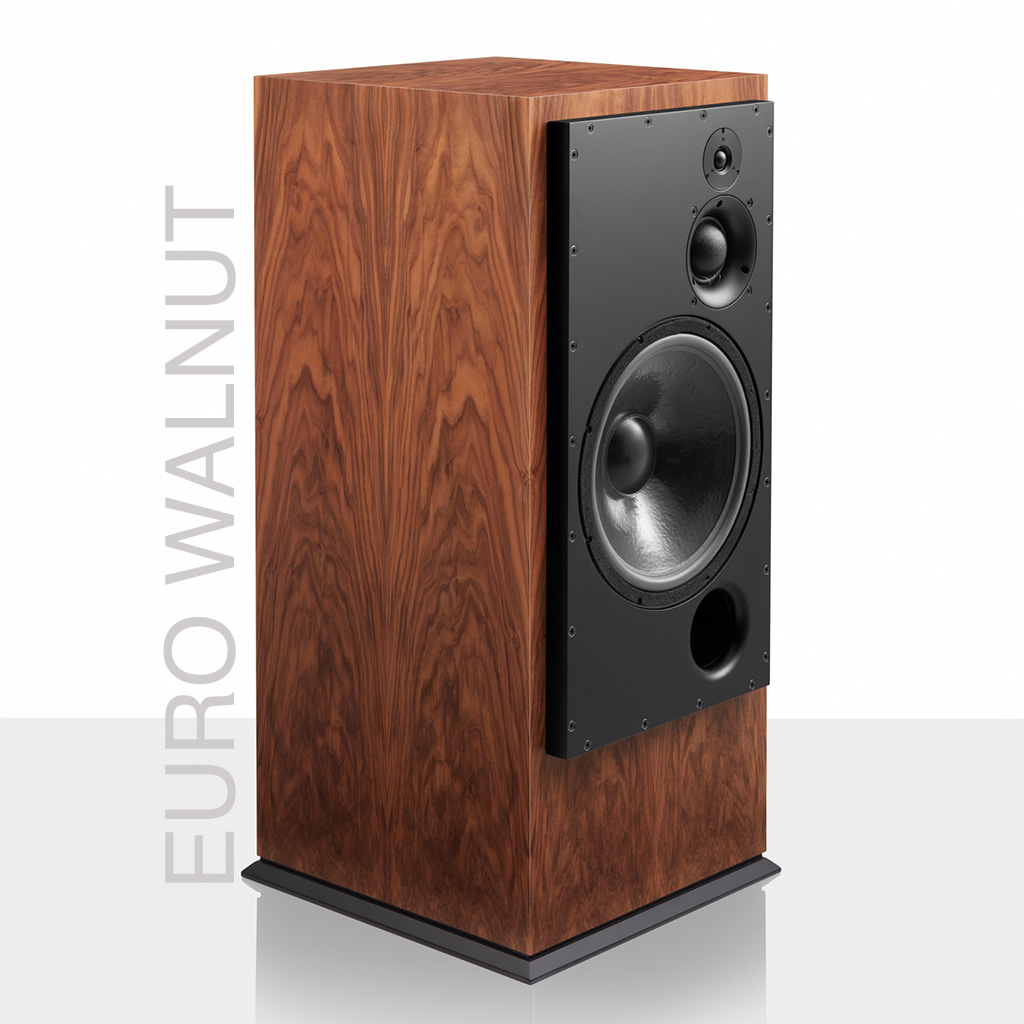

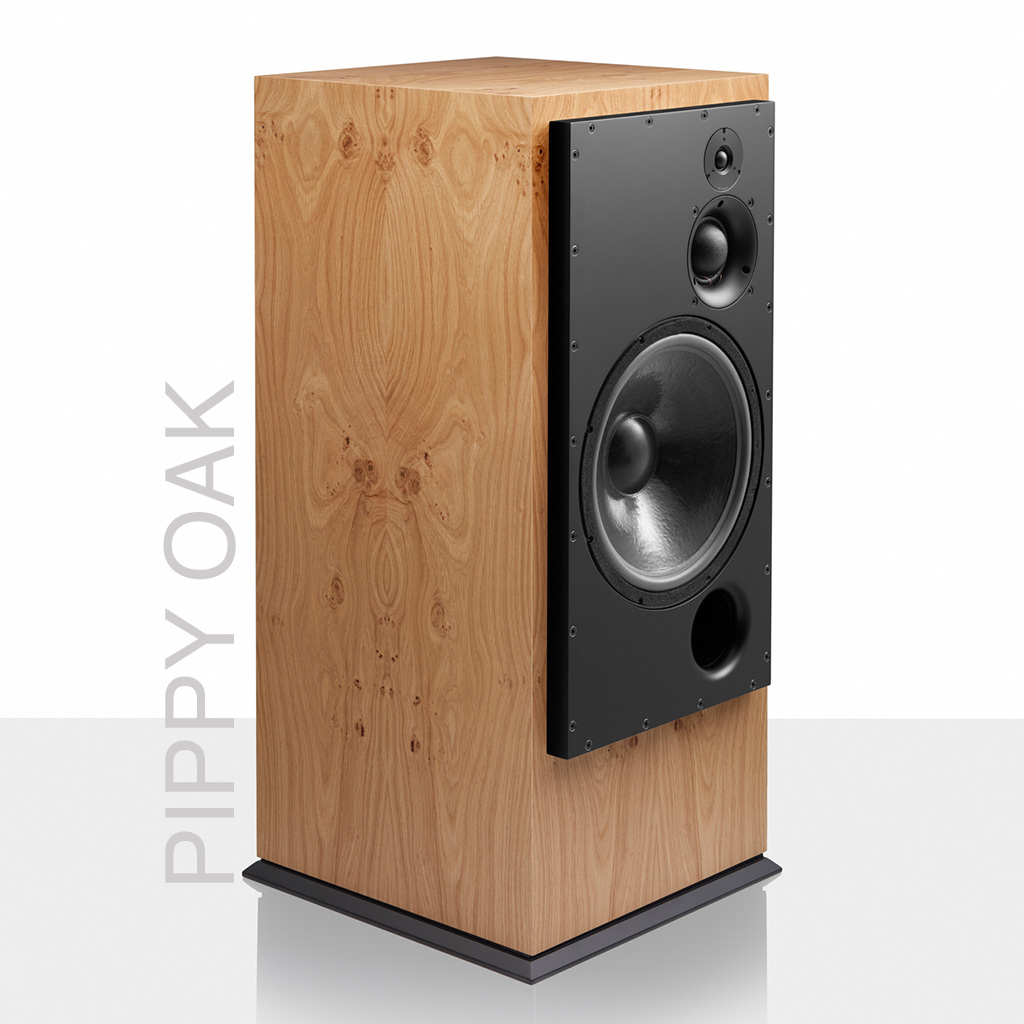

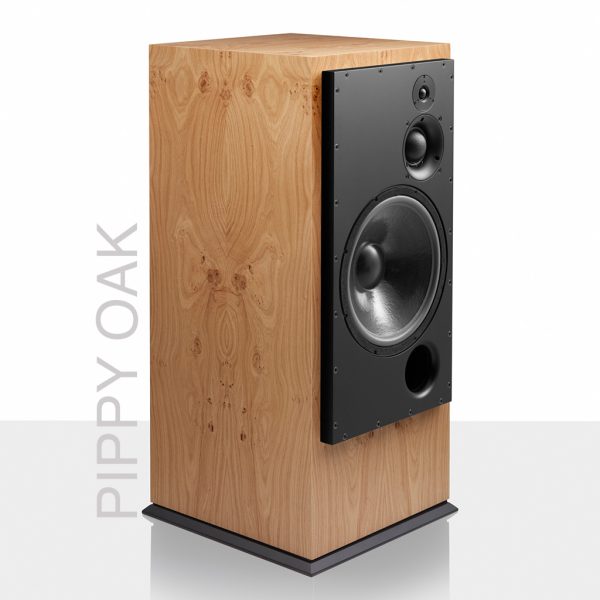

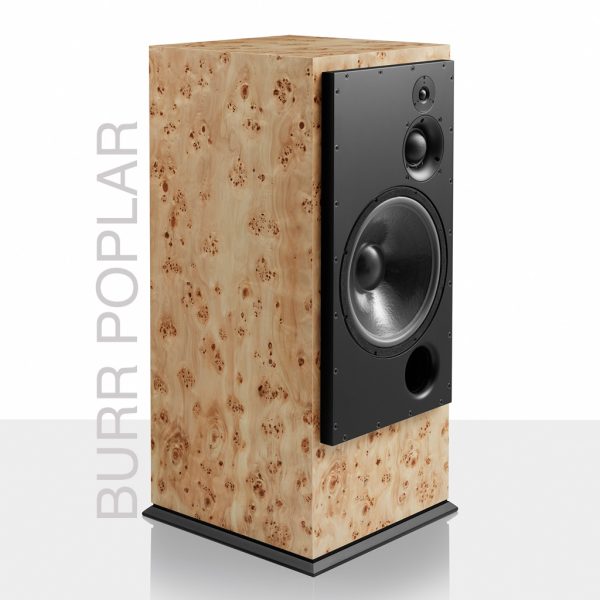

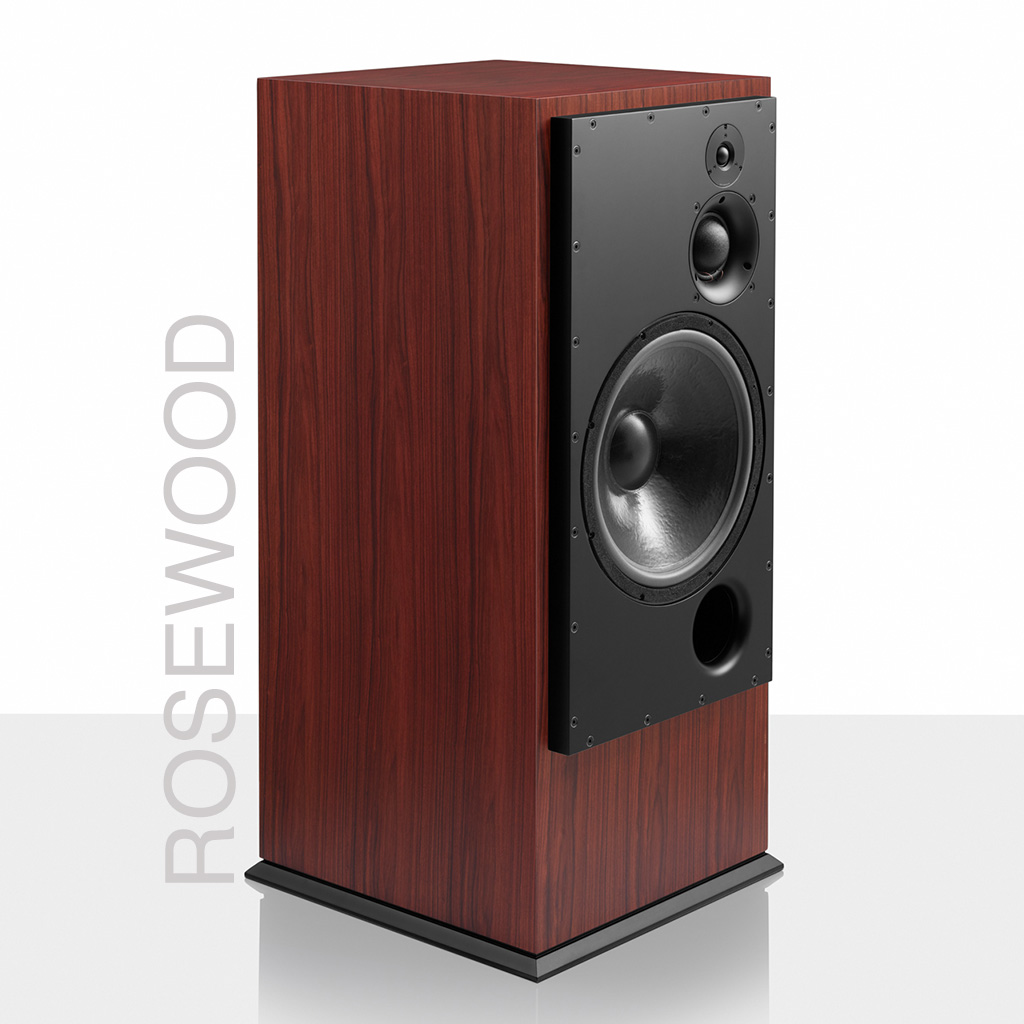

Premium Veneers (up-charge applies) – Rosewood, European Crown Cut Walnut, Burr Walnut, Pippy Oak, Burr Magnolia, Burr Poplar.
High Gloss (up-charge applies) – Clear High Glossed Veneer, Piano Black, Piano White
Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 375mm SL
Amplitude Linearity (±2dB): 60Hz–17kHz
Frequency Response (±6dB): 25Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 117dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Female XLR
Filters: All active
Amplifier Output: 200w LF, 100w Mid, 50w HF
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts, 2 x IEC Power Cables.
Cabinet Dimensions (HxWxD): 1104 x 495 x 635mm / 43.46 x 19.49 x 24.96″
Weight: 77kg
Passive
Drivers: HF 25mm Mid 75mm LF 375mm Super Linear
Amplitude Linearity ±2dB: 60Hz – 17kHz
Frequency Response -6dB: 25Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 91dB @ 1W @ 1m
Max continuous SPL @1m: 117dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts.
Cabinet Dimensions (HxWxD): 1104 x 495 x 635mm / 43.46 x 19.49 x 24.96″
