SCM50SLT

Overview

The SCM50 ASLT (active) and SCM50 PSLT (passive) towers are designed to offer exceptional performance and enjoyment to the home hi-fi enthusiast and music lover.

The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.

Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9″ bass driver incorporates ATC’s unique Super Linear Magnet technology. Our active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50PSLT provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.

Available Finishes

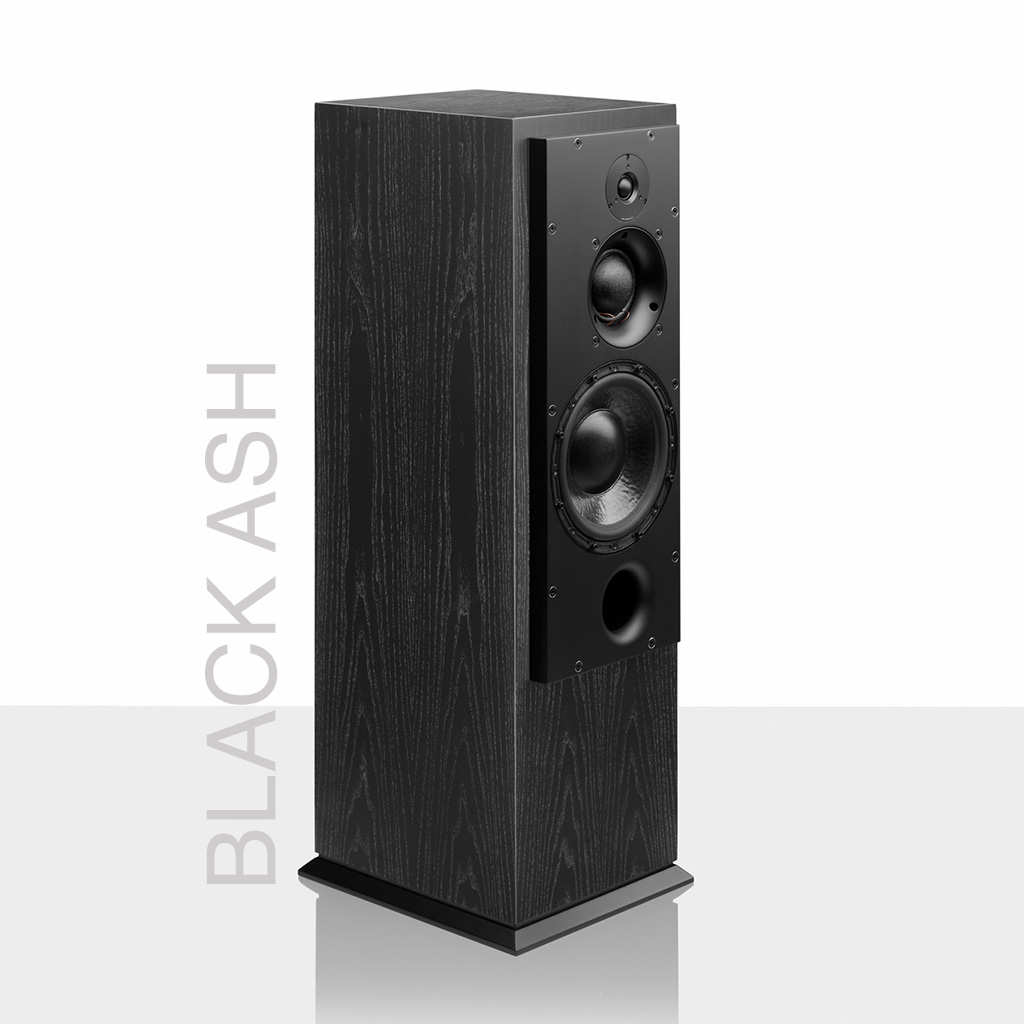

Standard Veneers – Cherry, Walnut, Oak & Black Ash.

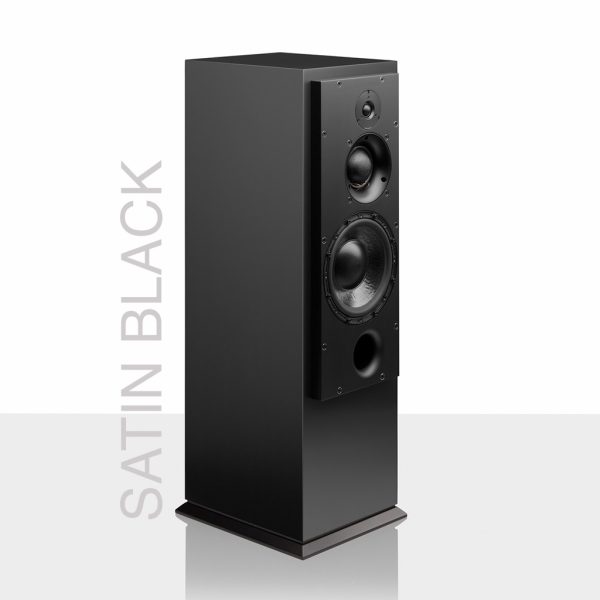

Standard Paints – Satin Black, Satin White
Premium Veneers (up-charge applies) – Rosewood, European Crown Cut Walnut, Burr Walnut, Pippy Oak, Burr Magnolia, Burr Poplar.
High Gloss (up-charge applies) – Clear High Glossed Veneer, Piano Black, Piano White

Active SCM50ASLT

Drivers: HF 25mm ATC SH25-76S, Mid 75mm ATC Soft Dome, LF 243mm Super Linear
Amplitude Linearity (±2dB): 70Hz–20kHz
Frequency Response (±6dB): 38Hz–25kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors:  Female XLR
Crossover Filters: 4th Order Linkwitz-Riley
Amplifier Output: 200w LF, 100w Mid, 50w HF (active version)
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts, 2 x IEC Power Cables.
Cabinet Dimensions (HxWxD): 1003 x 304 x 470mm / 39.49 x 11.97 x 18.50″
Weight: 51kg

Passive SCM50PSLT

Drivers: HF 25mm ATC SH25-76S, Mid 75mmATC Soft Dome, LF 234mm Super Linear
Amplitude Linearity ±2dB: 70Hz – 20kHz
Frequency Response -6dB: 40Hz & 25kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 85dB @ 1W @ 1m
Max continuous SPL @1m: 112dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms (5.5 ohms min)
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts.
Cabinet Dimensions (HxWxD): 1003 x 304 x 470mm / 39.49 x 11.97 x 18.50″
Weight: 45.5kg
