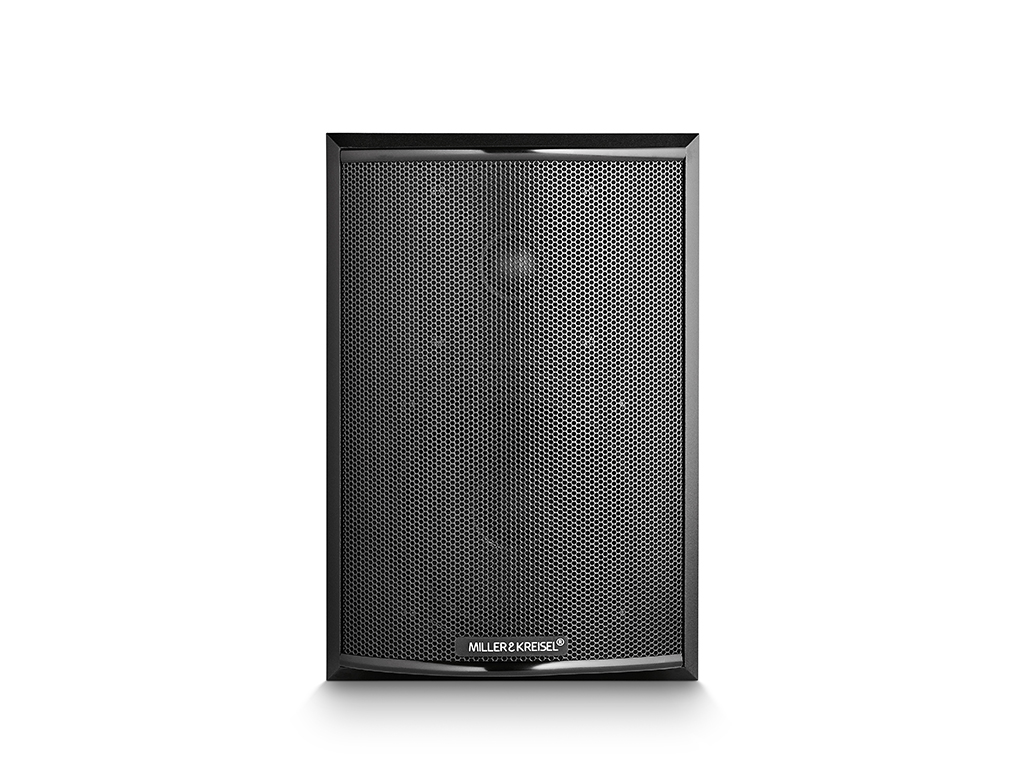

Miller & Kreisel SUR55T Tripole® Speaker (ea)
RM3,450.00
SUR55T Tripole® Speaker
The SUR55T is the most compact THX Tripole® solution we offer and is timbre matched to any of the 750 Series speakers.
Ultra-compact speaker featuring our new 750 Series components, together with 2 dedicated side drivers operating in a dipole fashion,
providing the most optimal cinematic surround sound available.
Featuring two 3” mid-tweeters on each side of the speaker oriented in dipole fashion, combined with the front-mounted 1” soft-dome tweeter and a 5.25” midwoofer direct radiating, the SUR55T provides even distribution of sound throughout the listening area with pinpoint accuracy and an enveloping soundfield.
The NEW Miller & Kreisel 750 Series takes the THX Select category to new a level and we are proud to introduce a true acoustic upgrade, in the form of our own customized Danish designed and produced tweeters.
We’ve taken the innovative high-performance technologies from the S150 Series and integrated them into the NEW Miller & Kreisel 750 Series.
New Danish-designed high-performance tweeters
- 28 mm vented voice coils provide high power handling and extended linearity.
- 28 mm high-precision coated soft dome.
- Specially constructed resonance-damped tweeter magnet-system for precise transient control.
- Integrated waveguide combined with short horn load for wide dispersion and smooth frequency response.
- High frequency prism system – Curved metal grill and angle tweeter for optimized off-axis response as well as on-axis response.
New 5.25-inch woofers
- Aluminum distortion-killer rings for reduced distortion at high SPL levels.
- New extra-stiff coated fiberglass cone with special M&K profile geometry.
- Vented pole piece in magnet system for low compression performance.
- Vented voice coil for low compression.
New optimized crossovers
- Phase-focused crossover designs optimized for low crossover points and transient control.
- New proprietary M&K Sound interconnect cables.
Specifications SUR55T
Specifications for the SUR55T Tripole® Speaker
Sound
| Nominal system impedance | 4 ohm (Z-min 4.2 ohm) |
| Frequency Response: | 80-20Khz (average response in room +/- 3dB) |
| Frequency roll off: | 80 Hz (-6dB at 80 Hz near field) |
| Crossover Frequency: | 1.6 Khz (“Phase focused” 4th/2nd oder) |
| Tweeter: | 1,1″ Silk Coated Dome |
| Woofer: | 5.25″ Coated Glass Fibre |
| Power handling: | 100 watt (Long term IEC-268-5 (cycled input 87-20Khz) |
| Power handling: | 55 watt (Rated IEC-268-5 (constant input 87-20Khz) |
| Recommended Amplifier Power: | 25-200 watt (recommended amp power to drive speaker) |
| Sensitivity: | 85 dB (avarage SPL 2.83V/ 1mtr on axis 200-10Khz) |
| System princip: | Sealed enclosure |
| Connection: | Terminal gold plating (screw for 5 mm cable / Banana) |
Dimensions
| Dimensions HxWxD: | 10.2 x 7 x 8.7” / 25.9 x 17.8 x 22.1 cm |
| Weight: | 10.25 lb / 4.7 kg |
Colors
| Finish: | Black Vinyl |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 22.1 × 17.5 × 25.9 cm |
